Description
| At Rated Voltage | 2 HP |
| Cord Range | 0.520 to 0.930 |
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 18-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 10-14 in-lbs |
| Wire Gauge | 16-8 AWG |
|
ELECTRICAL SPECIFICATIONS
|
|
| Amperage | 30 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 125 VAC |
| Wire | 3 |
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Environment | Dry |
| Flammability | Rated HB or better UL94 |
| Operating Temperature | -40°C to 60°C |
|
MATERIAL SPECIFICATIONS
|
|
| Assembly Screws | Steel, Zinc Plated |
| Back Cover | Thermoplastic |
| Blades/Contacts | Solid Brass |
| Body Material | Impact Modified Nylon |
| Clamp Insert | Nylon |
| Color | Black-White |
| Cord-Clamp | Nylon |
| Terminal Screws | Brass |
| Wire Module | Nylon |
|
PRODUCT FEATURES
|
|
| Brand | Black and White |
| Color | Black-White |

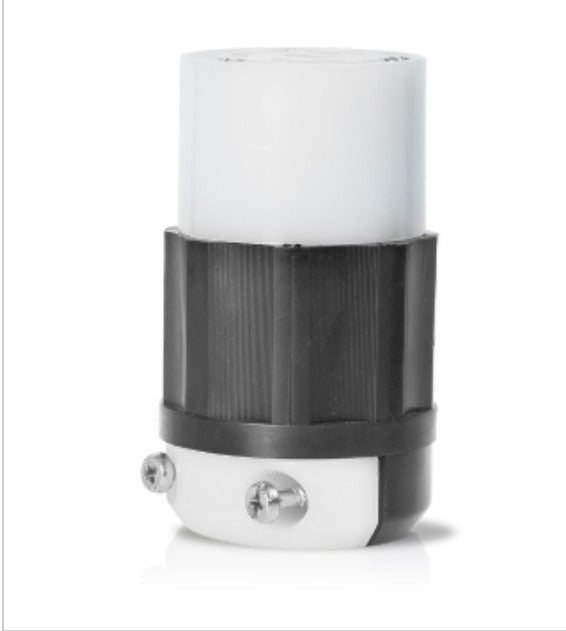

| Device Type | Locking Connector |
| NEMA | L5-30R |
|
STANDARDS AND CERTIFICATIONS
|
|
| ANSI | C-73 |
| CSA C22.2 No. 42 | File LR-406 |
| NEMA | WD-6 |
| NOM | 057 |
| UL Fed Spec WC-596 | File E13393 |
| UL498 | File E13393 |
| Warranty | Limited Lifetime Warranty |
