Description
| Cord Range | 0.385 to 0.860 |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal Accom. | 14-8 AWG |
| Terminal ID | Marked on Device |
| Termination | Back & Side |
| Torque Range | 14-16 in-lbs |
|
ELECTRICAL SPECIFICATIONS
|
|
| Amperage | 30 A |
| Current Limiting | Full Rated Current, Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Voltage | 250 VAC |
| Wire | 3 |
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Environment | Corrosive |
| Flammability | Rated V-0 per UL 94 |
| Operating Temperature | -40°C to 60°C |
|
MATERIAL SPECIFICATIONS
|
|
| Base Material | Valox |
| Body Material | Nylon, Nylon |
| Color | Black |
| Cover Material | Valox 357 |
| Face Material | Ultramid |
| Ground Contacts | Brass |
| Grounding Screw | Chromated Brass |
| Line Contacts | Brass |
| Strap Material | Nickel-Plated Brass |
| Terminal Clamps | Nickel-Plated Brass |
| Terminal Screws | Chromated Brass |
|
PRODUCT FEATURES
|
|
| Base Material | Valox |
| Brand | V-0-Max |
| Color | Black |

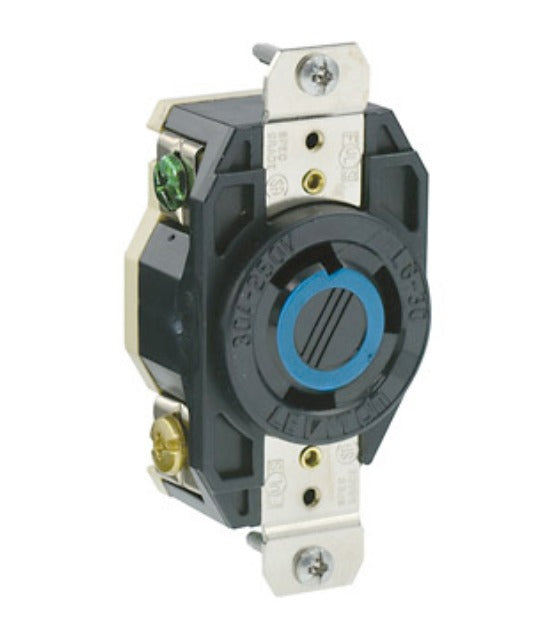

| Device Type | Locking Receptacle |
| Face Material | Ultramid |
| NEMA | L6-30R |
| Warranty | Limited Lifetime Warranty |
|
STANDARDS AND CERTIFICATIONS
|
|
| ANSI | C-73 |
| CSA | C22.2 No. 42 |
| NOM | 057 |
| UL | 498 |
| UL Fed Spec | W-C-596 |
|
WARRANTY
|
|
| Warranty | Limited Lifetime Warranty |
